DOUGH DIVIDER (CUT & WEIGH MACHINE)

DOUGH DIVIDER (CUT & WEIGH MACHINE)


General Features Newly developed closed circuit lubrication system Newly developed sucking piston and cutting drum technology Cutting dough without damage and compress All dough touching surfaces made by stainless steel 60 kg dough capacity Weight adjustment

Volumetric Dough Divider: The Same Weight in Every Piece

The Humak dough divider cuts dough into portions of the set weight at high speed. Compared with weighing by hand, it saves labour and eliminates the waste caused by uneven portions.

Models by weight range

  • CHK/30: 30–120 g, 3000–4000 pieces/hour
  • CHK/50: 50–250 g, 1500–2000 pieces/hour
  • CHK/100: 100–600 g, 1500–2000 pieces/hour
  • CHK/250: 250–1200 g, 1500–2000 pieces/hour

All models have a 1.5 kW motor, dimensions of 70x137x160 cm and a weight of 450 kg.

Gentle on the dough

The newly developed cutting drum and suction piston technology divides the dough without pressing or crushing it. A 60 kg dough hopper, closed-circuit lubrication and stainless steel on all dough-contact surfaces are standard.

Part of a complete bread line

Together with the dough rounder, intermediate proofer and moulder, it forms the first step of a fully automatic bread line.

For the right model and a quotation, contact us on WhatsApp: +90 544 223 72 26

TECHNICAL SPECIFICATIONS

 TECHNICAL SPECIFICATIONS

CHK / 30

CHK / 50

CHK / 100

CHK / 250

DOUGH CUTTING WEIGHT

30 - 120 kg

50 - 250 gr

100 - 600 gr

250 - 1200 gr

DOUGH CUTTING CAPACITY

3000 - 4000 pcs/h

1500 - 2000 pcs/h

1500 - 2000 pcs/h

1500 - 2000 pcs/h

DIMENSIONS ( W x D x H )

70 x 137 x 160 cm

70 x 137 x 160 cm

70 x 137 x 160 cm

70 x 137 x 160 cm

MOTOR POWER

1,5 Kw

1,5 Kw

1,5 Kw

1,5 Kw

WEIGHT

450 kg

450 kg

450 kg

450 kg

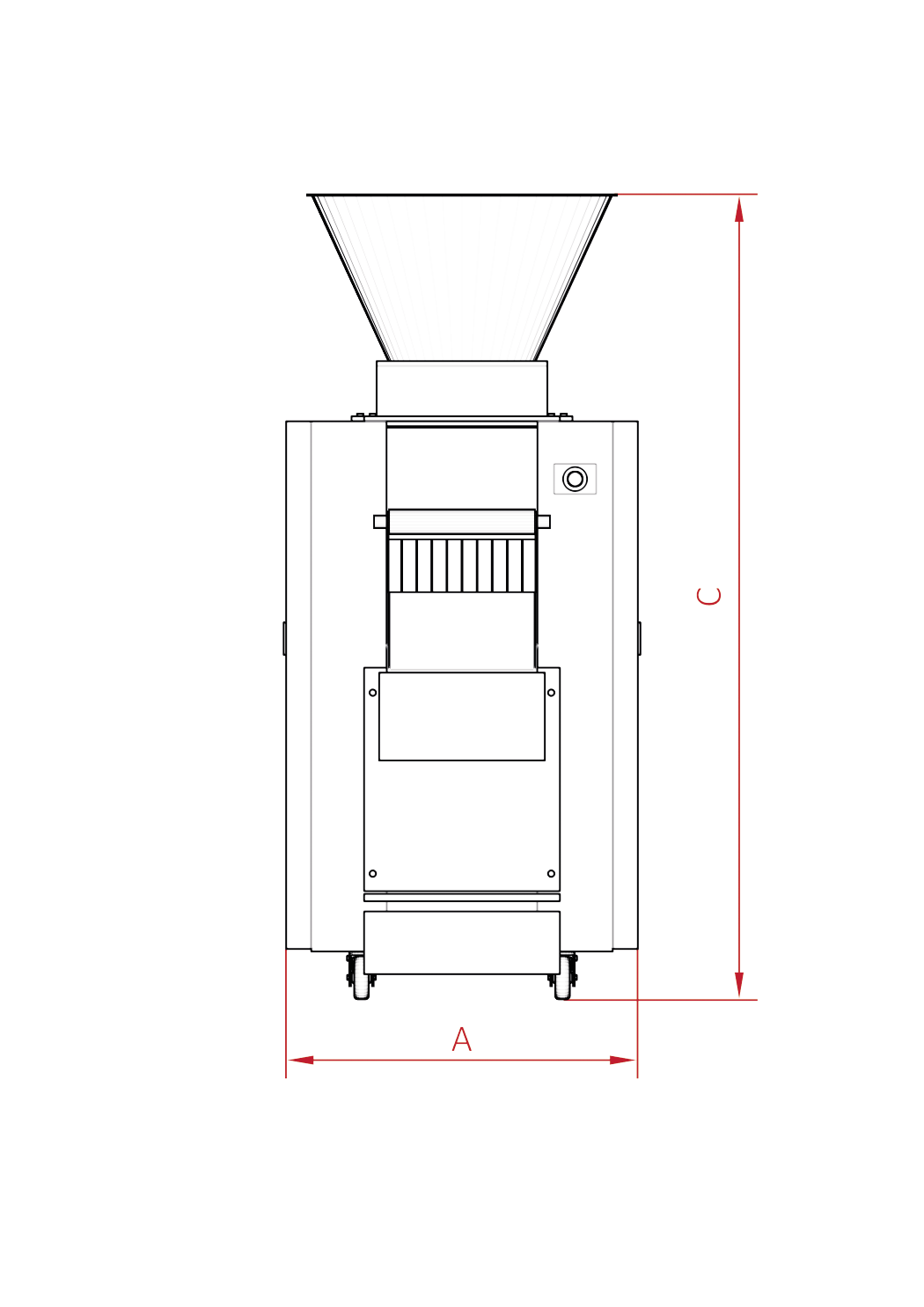

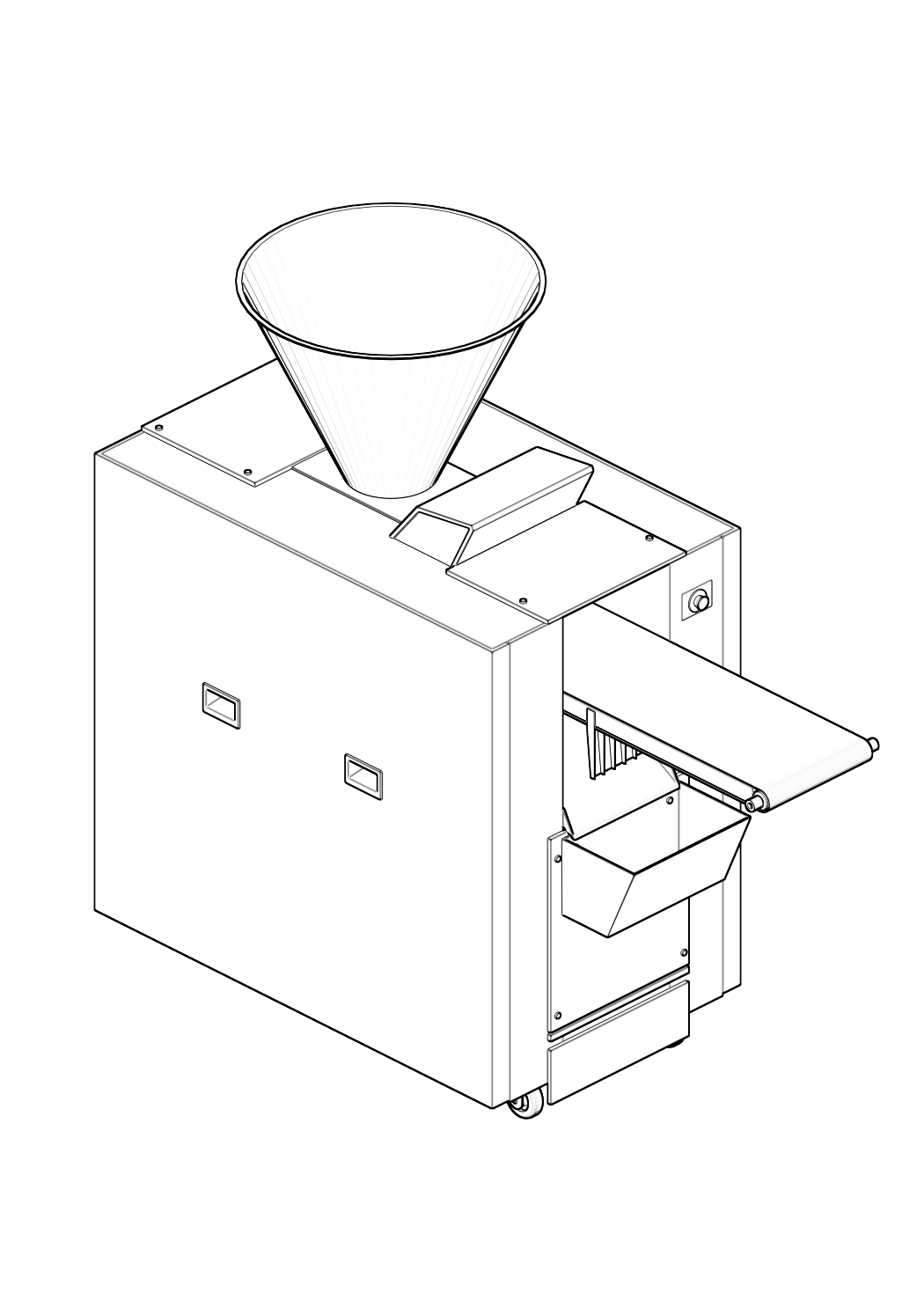

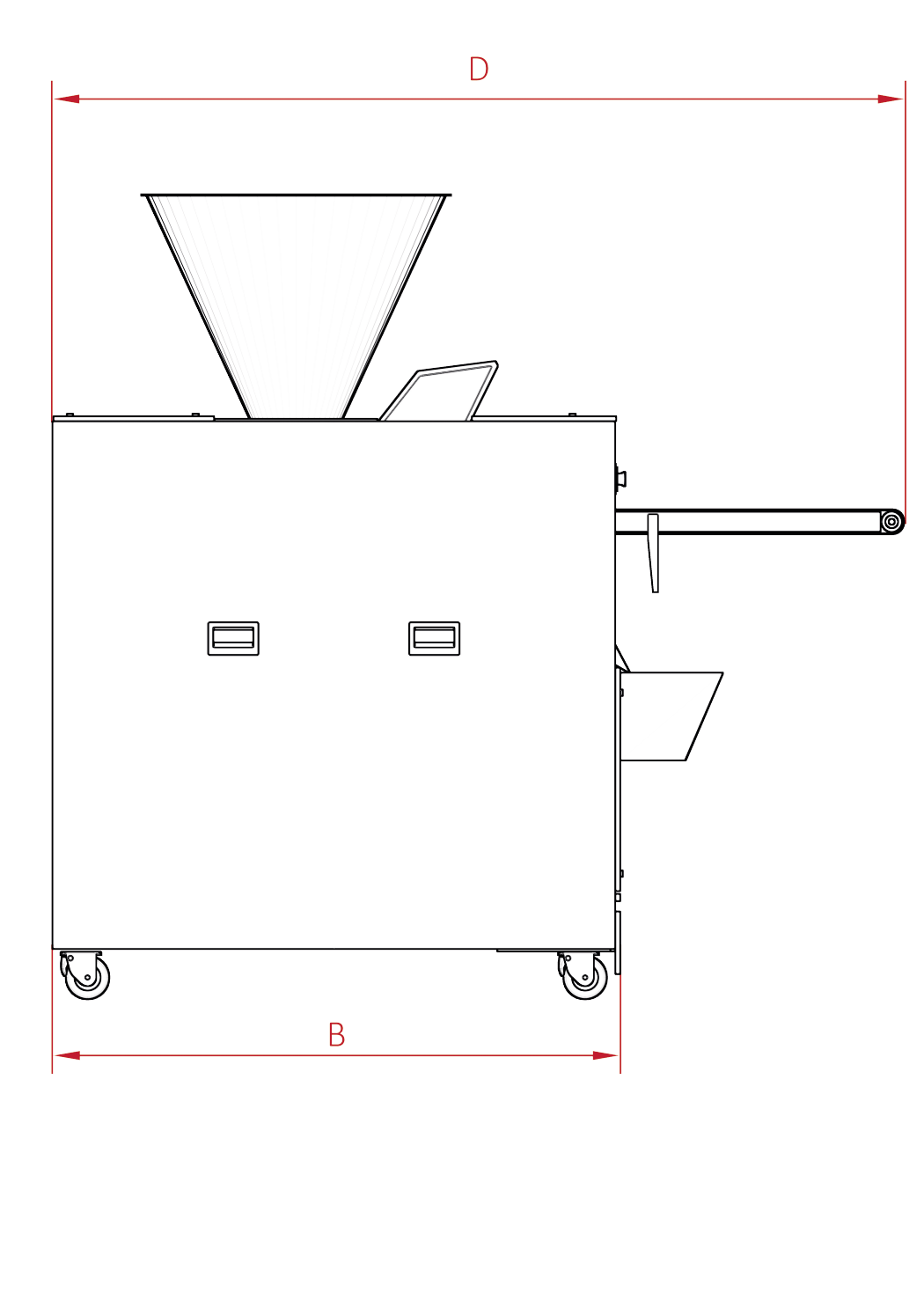

TECHNICAL DRAWING
