DOUGH SHEETER MACHINE

General Features Robust steel construction Compact dimensions Right and left start buttons Stainless steel grids Removable dough scrapers All dough touching surfaces are accordance with healthy standards Optional stainless steel body

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS	CHA/500	CHA/600	CHA/700	CHA/500S	CHA/600S
BELT WIDTH	50 cm	60 cm	70 cm	50 cm	60 cm
MOTOR POWER	0,75 Kw	0,75 Kw	0,75 Kw	0,75 Kw	0,75 Kw
ROLLER LENGHT	50 cm	60 cm	70 cm	50 cm	60 cm
ROLLER DIAMETER	71 mm	71 mm	71 mm	71 mm	71 mm
ROLLER INTERVAL	0,1 - 48 mm	0,1 - 48 mm	0,1 - 48 mm	0,1 - 48 mm	0,1 - 48 mm

DOUGH SHEETER MACHINE

DOUGH SHEETER MACHINE

TECHNICAL SPECIFICATIONS

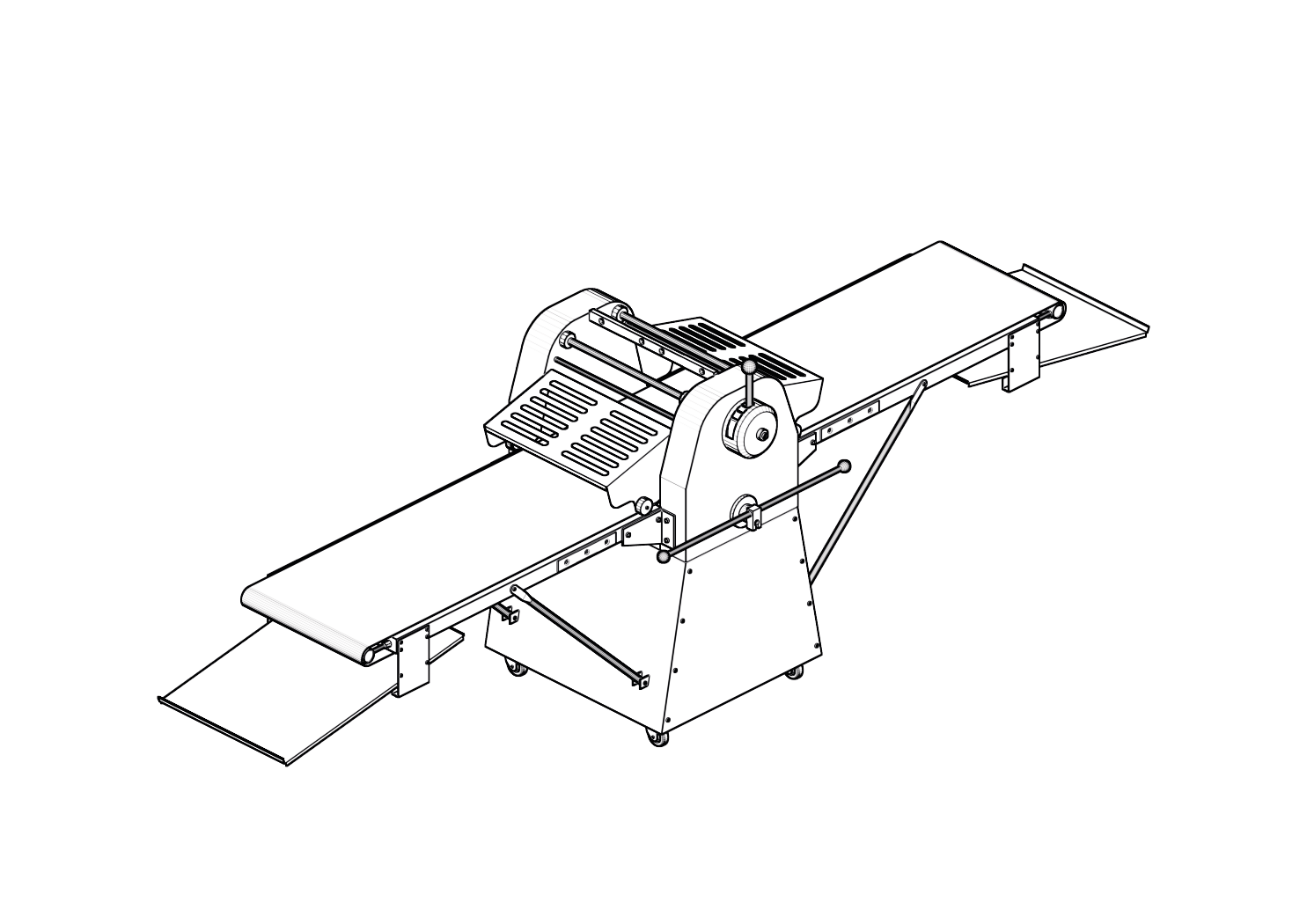

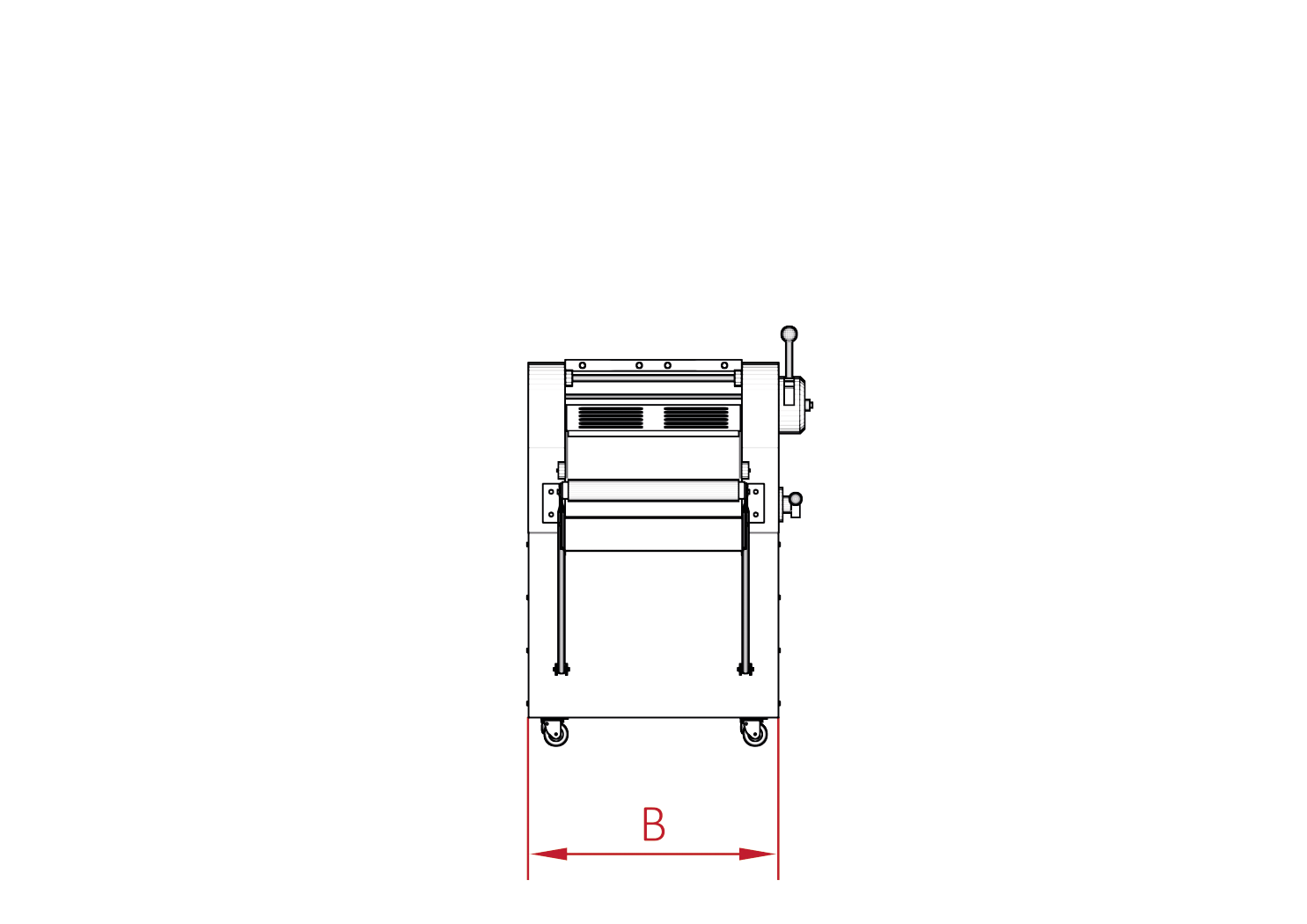

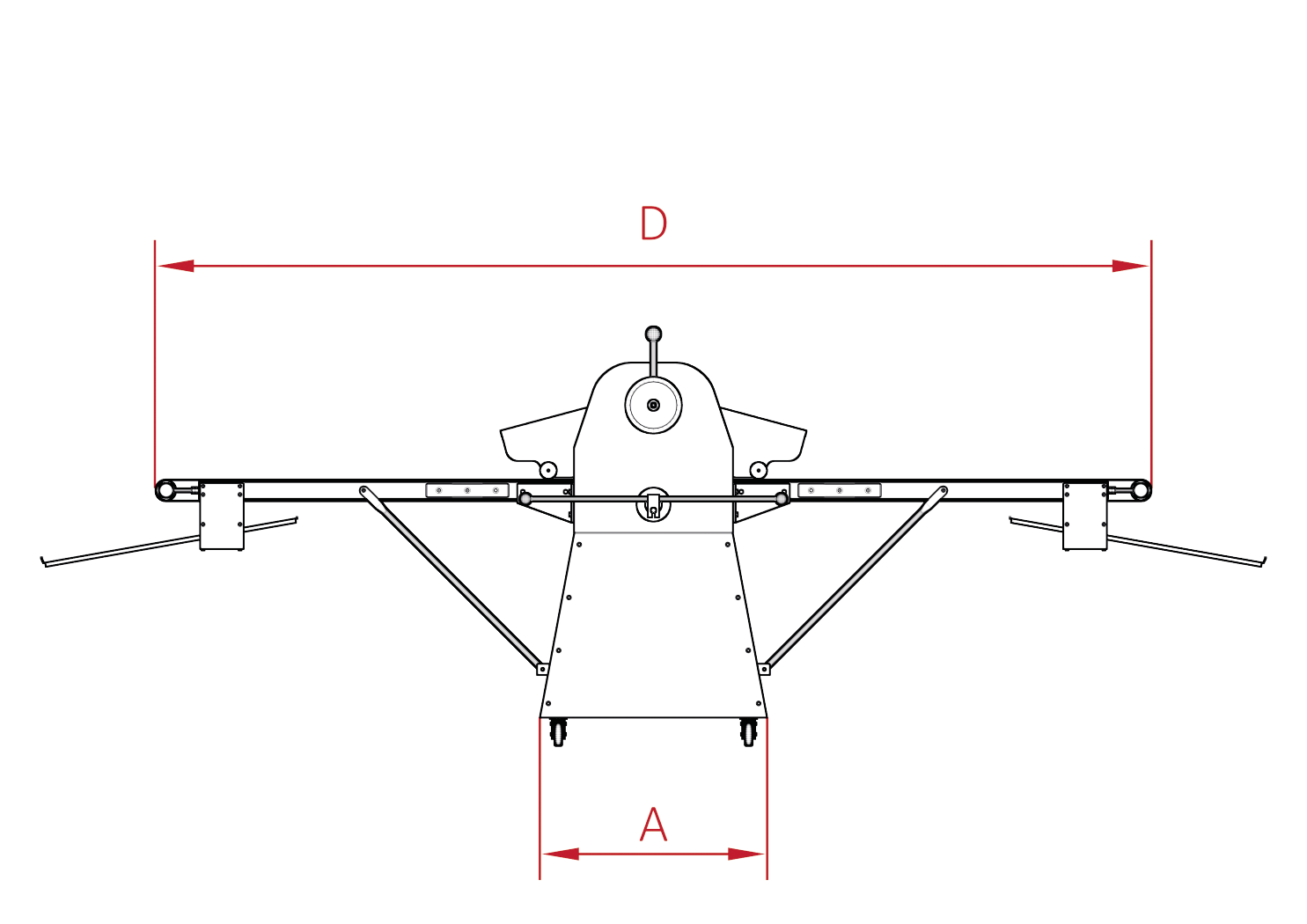

TECHNICAL DRAWING
